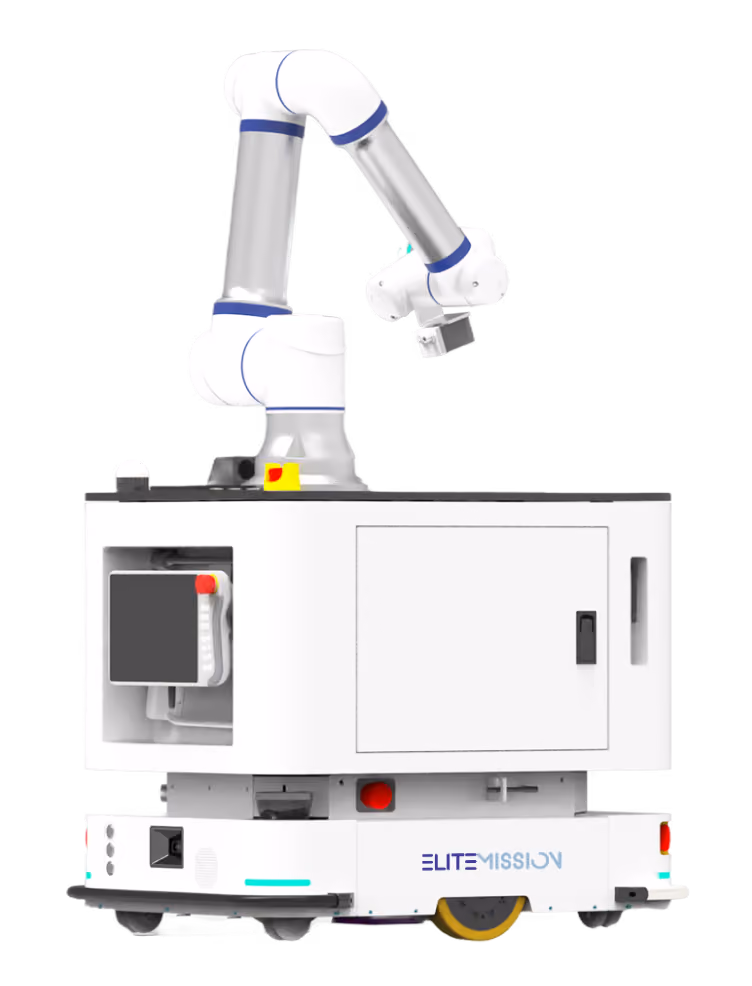

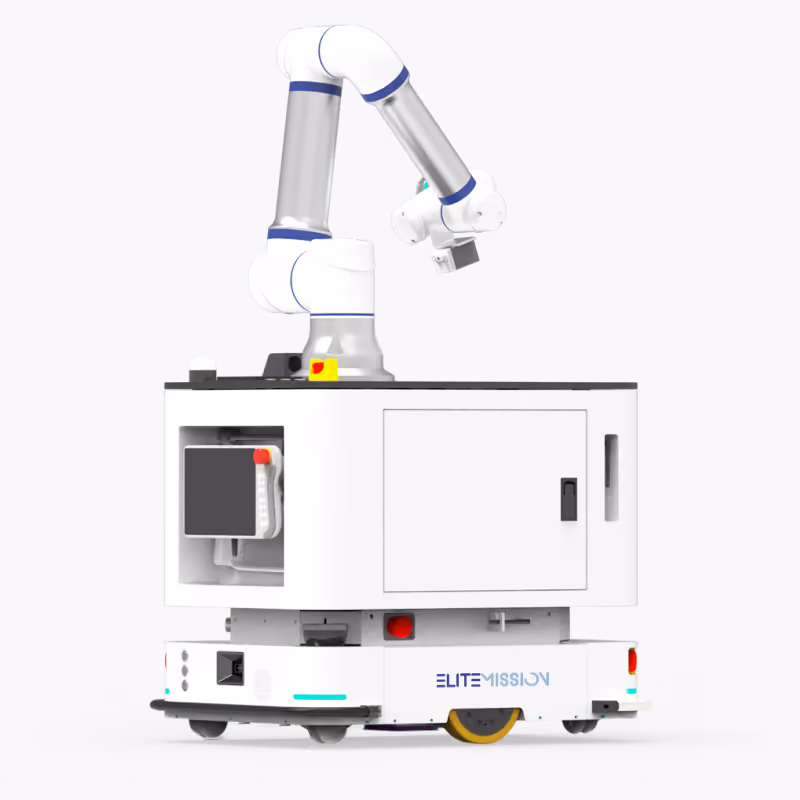

DC300-06
Name Parameter
Net Weight/Payload250 KG | 150 KG
Dimensions750×550×650 mm
Working Radius1304 mm
Arm Payload6 KG
Maximum Speed1.5 m/s
Integrated Positioning Accuracy (2.5D)±0.2 mm
Navigation Positioning AccuracyReflectorless: ±10 mm; Reflective: ±5 mm
Battery Capacity48V/30Ah | 51.2V/60Ah
Charging MethodManual/Automatic Charging | Optional Rapid Battery Swap System
Spec Parameter
Payload 25kg
Radius 1500mm
Repeatability ±0.8mm
Axis 6
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 2300mm
Weight428 kg
Spec Parameter
Payload 30kg
Radius 1522mm
Repeatability ±0.1mm
Axis 5
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 2300mm
Weight 400 kg
Spec Parameter
Model CH-A143/85
Weight 20 kg
Dimensions 410 × 320 × 270 mm
Charging
Connector Height 143/85 ±10 mm
Input Voltage AC 220 V ±10% (16 A GB-standard plug)
Input Current <10 A
Frequency 50 Hz
Rated Voltage DC 48 V
Maximum
Voltage DC 58.4 V
Output Current Max 50 A
Number of
Output Channels 1 Channel
Ethernet Port Supported
Supported
Protocols Modbus TCP
Spec Parameter
Payload 25kg
Radius 1500mm
Repeatability ±0.8mm
Axis 6
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 1600mm
Weight 380 kg
Spec Parameter
Payload 30kg
Radius 1522mm
Repeatability ±0.1mm
Axis 5
Max Pallet Size 1200 mm * 1000 mm
Max Stacking Height 1600mm
Weight 380 kg
Spec Parameter
Model CH-MS60/40
Weight 68 kg
Dimensions 842 × 600 × 441 mm
Compatible
Battery 60 Ah / 40 Ah
Input Voltage AC 220 V ±10% (Dual-channel 10 A GB-standard plug)
Input Current <10 A
Frequency 50 Hz
Rated Voltage DC 48 V
Maximum
Voltage DC 58.4 V
Output Current 25/30 A
Number of
Output Channels 2 Channel
Ethernet Port Supported
Supported
Protocols Modbus TCP
Spec Parameter
Temperature range 0~50℃
Peak Power Consumption 2~3.5kW
Power Source Single-phase 220VAC/110VAC 50~60Hz
Footprint 1400mm x 1700mm
Spec Parameter
Size 301mm x 232mm x 54mm
Screen size 12.1"
Resolution 1280 x 800 pixels
IP rating IP54
Weight1.7 kg
Cable length5.5 m
Temperature range0~50℃
Relative humidity5%–95% (non-condensing)
MaterialAluminum, Plastic, Rubber
Input methodCapacitive touch-screen
Spec Parameter
Size 301 mm x 232 mm x 105 mm
Screen size 12.1"
Resolution 1280 x 800 pixels
IP rating IP54
Weight 1.8 kg
Cable length 5.5 m
Temperature range0~50℃
Relative humidity5%–95% (non-condensing)
Material Aluminum, Plastic, Rubber
Input methodCapacitive full touch-screen, 3-mode enable key, jogging-keys, function keys
Robotic Arm Integration
Integrate compatible robotic arms to enable flexible mobile manipulation for different applications.
2.5D Vision + IMU
Enhance environmental perception and positioning with integrated 2.5D vision and IMU.
Autonomous Transportation Control System
Enable unified AGV/AMR scheduling, fleet management, and integration with existing IT systems.
Automatic Charging Station
Support automatic charging for efficient and continuous operation.
Battery Swap Cart
Enable rapid battery replacement to reduce downtime and extend operating availability.
